Product Overview
Exterior WPC Fluted Wall Cladding provides the visual warmth of timber with the practical advantages of a composite exterior cladding system. The raised fluted profile creates clean vertical or horizontal shadow lines, making it suitable for contemporary residential, hospitality, retail and commercial architecture.
The WPC construction is designed for exterior decorative applications where natural timber may require frequent painting, staining or pest treatment. Its surface is easy to clean and offers resistance to moisture, insects, rot and common outdoor exposure when correctly specified and installed.
Key benefits include:
- Contemporary fluted architectural appearance
- Natural wood-grain visual effect
- Moisture- and pest-resistant composite structure
- Low routine maintenance
- Easy-to-clean surface
- Concealed fixing system
- Multiple colors and profile constructions
- Suitable for vertical or horizontal installation
- Compatible accessories for complete project supply
- OEM production for distributors and project buyers
Fire-performance formulations and relevant test documentation can be discussed according to the destination market and project requirements. Final performance claims should be based on the confirmed product grade and supplied test reports.
Specifications & Options

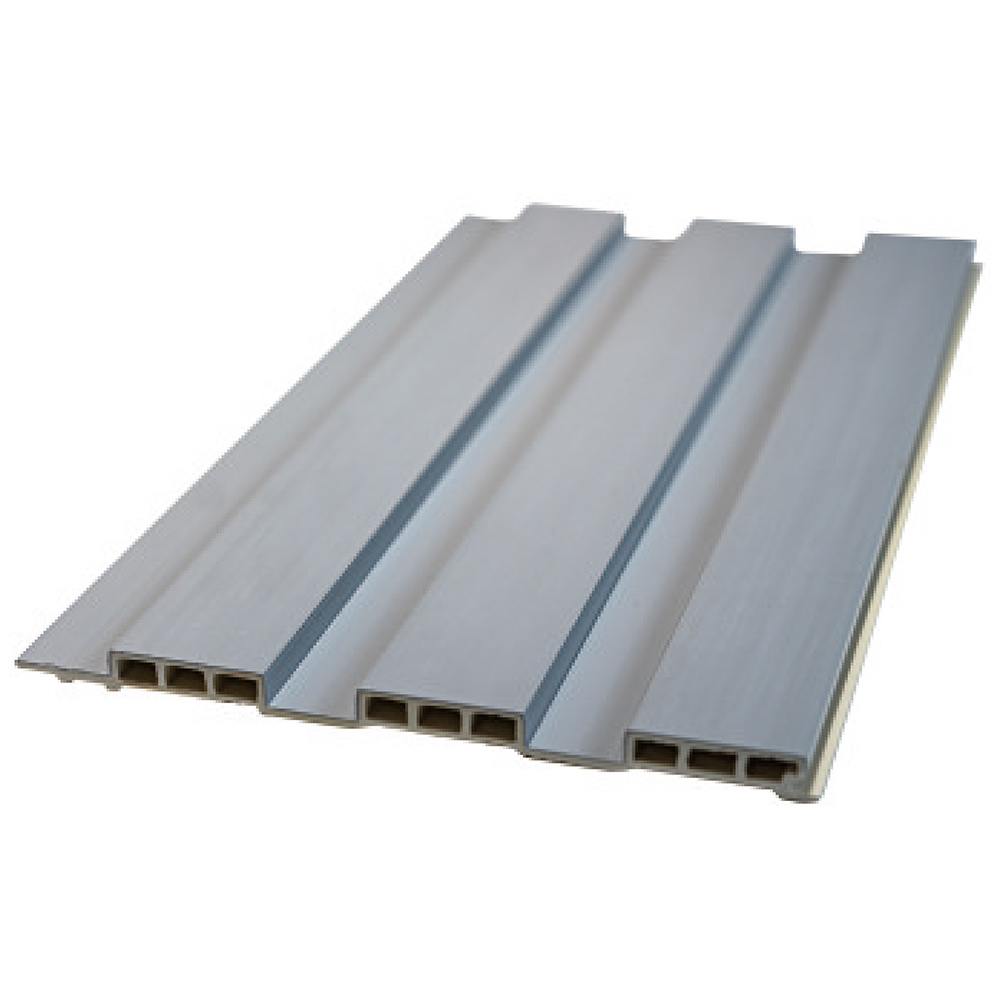

The primary wholesale model is the 219 × 26 mm exterior WPC fluted wall panel, supplied in a standard length of 2.9 m.
Available constructions include:
- First-generation WPC panel: Approximately 2.88 kg/m, 4.2 mm wall thickness and around 880 m² loading per 20GP.
- Semi-capped co-extrusion panel: Approximately 2.86 kg/m, 4.2 mm wall thickness and around 880 m² per 20GP.
- Fully capped co-extrusion panel: Approximately 2.95 kg/m, 4.2 mm wall thickness and around 880 m² per 20GP.
Additional project profiles include:
- 217 × 25 mm fully capped co-extrusion panel
- 177 × 13 mm economical semi-capped panel
- 148 × 21 mm first-generation outdoor wall panel
- 148 × 21 mm hot-pressed 3D wall panel
- 156 × 21 mm second-generation co-extrusion panel
Co-extrusion versions add a protective outer layer and are recommended when a project requires enhanced surface protection, color stability and easier maintenance.
Standard colors range from dark architectural shades to natural teak, rosewood and light-wood finishes. Custom color matching and production-batch samples can be arranged for qualifying orders.
Installation & B2B Supply
The wall panels should be mounted onto a level and adequately spaced keel or subframe. Depending on the wall structure and project design, installation normally uses wall-panel keels, panel clips and expansion screws.
Installation recommendations:
- Confirm that the supporting wall or frame is level and structurally suitable.
- Install keels at the spacing specified in the project installation guide.
- Use compatible clips to create a concealed fixing system.
- Leave suitable expansion clearance around panel ends and perimeter details.
- Do not lock the panels so tightly that normal thermal movement is restricted.
- Use matching trims or profiles around corners, openings and exposed edges.
- Confirm drainage and ventilation details for exterior facade applications.
- Follow local building regulations and project-specific engineering requirements.
For quotation, please provide:
- Required wall area in square metres
- Preferred profile and construction
- Required color or approved reference sample
- Panel length
- Installation orientation
- Destination port
- Required testing or certification
- Packaging and private-label requirements
We support distributors, importers, contractors and developers with product samples, OEM colors, customized packaging, accessory matching and full-container order planning. Production lead time, MOQ and mixed-color loading should be confirmed before issuing the purchase order.
FAQ
Is this WPC panel suitable for exterior walls?
Yes. It is designed for decorative exterior cladding applications such as facades, garden walls, fences, balconies and entrances. The correct product grade and installation system should be selected for the local climate and project requirements.
Can the panels be installed vertically and horizontally?
Yes. Both orientations are possible when the panels are installed on a compatible, level subframe with the required expansion allowances, drainage and ventilation.
What is the standard size?
The primary profile is 219 × 26 mm with a standard length of 2.9 m. Other profiles and custom lengths are available subject to production confirmation.
What is the difference between first-generation and co-extrusion panels?
First-generation WPC offers an economical composite construction. Co-extrusion panels include an additional protective surface layer that can improve resistance to staining, moisture exposure, fading and routine wear.
Are matching accessories available?
Yes. Wall-panel keels, fixing clips, expansion screws and selected finishing profiles can be supplied as part of the project order.
Can you produce customized colors?
Yes. Standard wood and architectural colors are available, and custom color matching can be evaluated for qualifying order quantities. A production sample should be approved before mass manufacturing.
What is the MOQ?
MOQ depends on the profile, construction, color and packaging. Contact us with the required quantity and destination port for confirmation.
Can I order samples before placing a bulk order?
Yes. Standard color and profile samples can be arranged. Sample availability, preparation charges and courier costs are confirmed before dispatch.
Do you provide OEM or private-label services?
Yes. OEM colors, customized lengths, carton markings, pallet labels and private-label packaging are available for distributors and building-material brands.
Is the product completely fireproof?
WPC should not be described as universally fireproof. Fire-performance grades and supporting test reports depend on the selected formulation. Please provide the required standard when requesting a quotation.
How do I receive an accurate project quotation?
Send us the project area, panel profile, color, length, installation location, required certifications and destination port. We will calculate panel quantities, accessories, packaging and container loading.
